S-STA-6SVZ

• Wheel Diameter

  6″

• Wheel Width

  2″

• Overall Height

  7-1/2″

• Weight Capacity

  800 lbs.

• Wheel Brand

  Hamilton

• Color

  Silver

• Wheel Configuration

  Single Wheel

• Tread Style

  V-Groove

• Wheel Material

  Stainless Steel

• Bearing Type

  Delrin Bearing

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  3-3/4″ x 4-1/2″

• Top Plate Bolt Hole Pattern

  2-5/8″ x 3-5/8″ slotted to 3″ x 3″

• Mounting Bolt Size

  3/8″

• Lead Time to Ship

  Varies based on supplier availability

• Axle Type

  Solid Axle

• Fork Finish

  Stainless Steel

• Temperature Range

  -40 to +250 F

• Application

  Tracks

• Environment

  High Heat, Water

• Noise Reduction

  No

• Groove Width

  7/8″

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  11 lbs

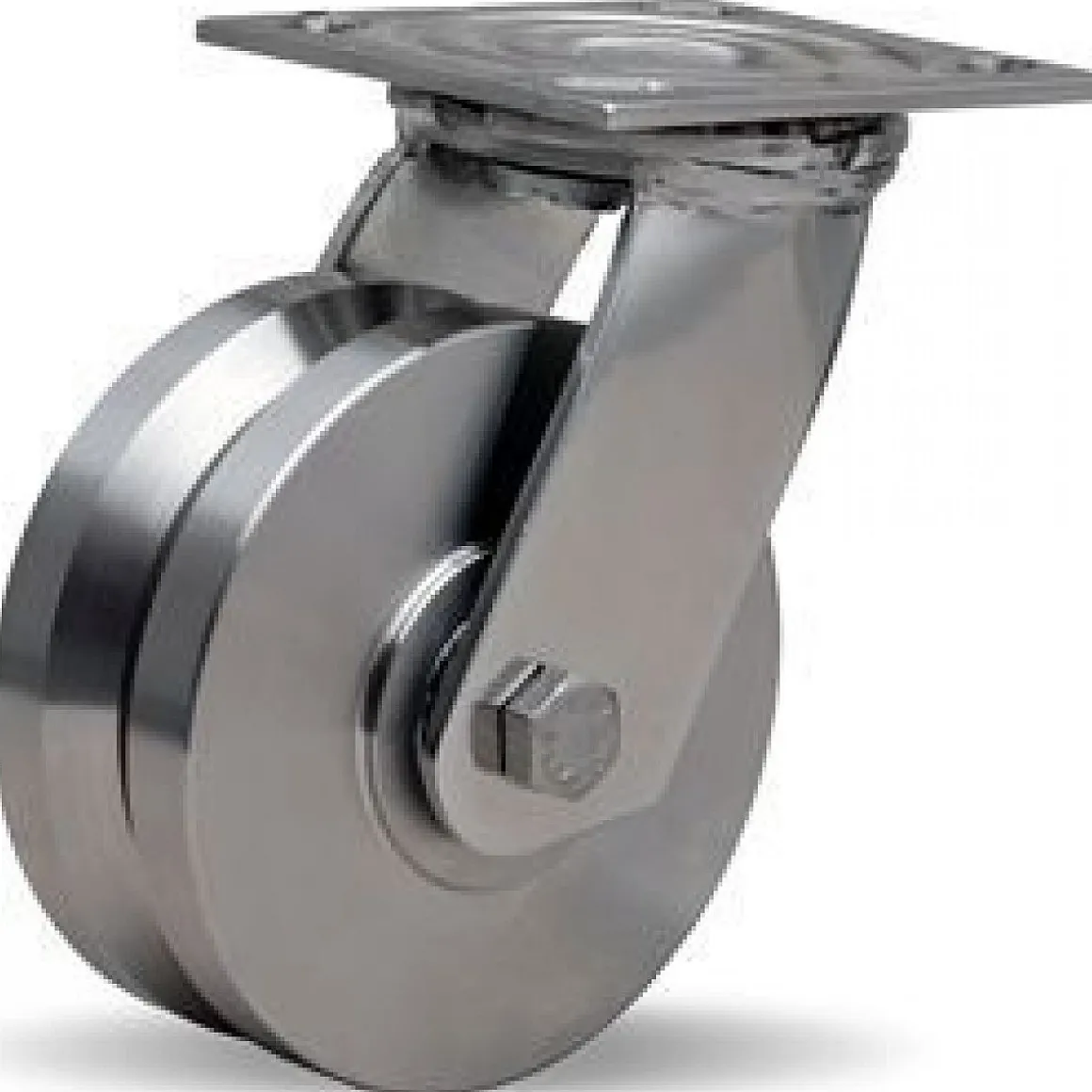

You’re viewing caster SKU S-STA-6SVZ This 6″ x 2″ Silver Hamilton Kingpin Swivel Caster has a weight capacity of 800 lbs. per caster. This product has an overall height of 7-1/2″. Additional product specs can be found on the Specifications tab of this product page.
