S-SPHS-5TRT-1

• Wheel Diameter

  5″

• Wheel Width

  2″

• Overall Height

  7-3/16″

• Weight Capacity

  620 lbs.

• Wheel Brand

  Hamilton

• Color

  Red

• Wheel Configuration

  Single Wheel

• Tread Style

  Flat Tread

• Wheel Material

  Polyurethane

• Bearing Type

  Tapered Roller Bearing

• Core Material

  Cast Iron

• Caster Type

  Spring-Loaded Swivel

• Mounting Type

  Top Plate

• Top Plate

  4-1/2″ x 6-1/2″

• Top Plate Bolt Hole Pattern

  2-7/16″ x 4-15/16″ slotted to 3-3/8″ x 5-1/4″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  Varies based on supplier availability

• Durometer

  94 Shore A

• Fork Finish

  Crimson Red

• Temperature Range

  -50 to +200 F Intermittent, 0 to +180 F Continuous

• Noise Reduction

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  15 lbs

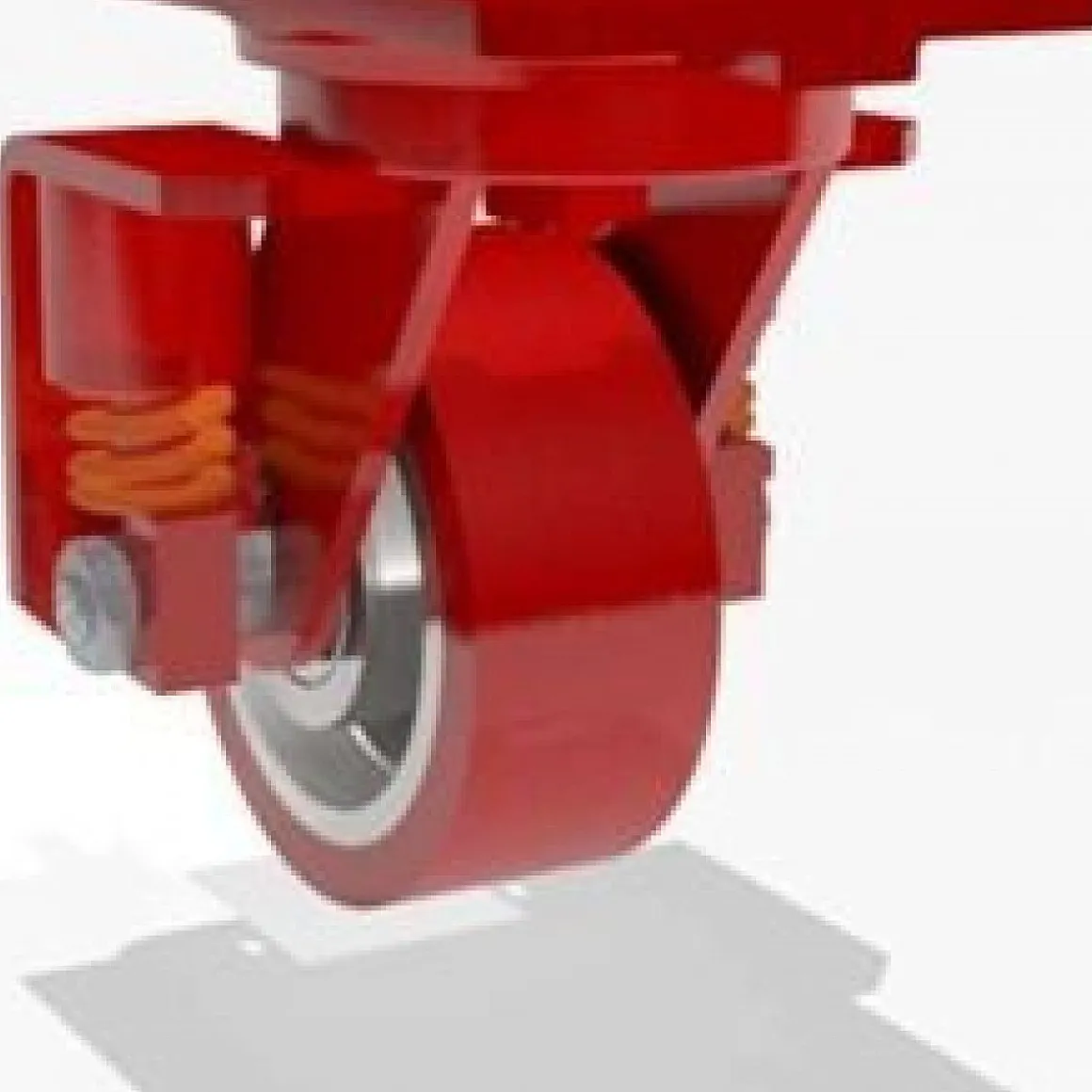

You’re viewing caster SKU S-SPHS-5TRT-1 This 5″ x 2″ Red Hamilton Spring-Loaded Swivel Caster has a weight capacity of 620 lbs. per caster. This product has an overall height of 7-3/16″. Product specs (such as Top Plate Bolt Hole Pattern or Stem Size) can be found on the Specifications tab of this page.
