S-SPCH-6PH-1

• Wheel Diameter

  6″

• Wheel Width

  2-1/2″

• Overall Height

  11-1/4″

• Weight Capacity

  850 lbs.

• Wheel Brand

  Hamilton

• Color

  Black

• Wheel Configuration

  Single Wheel

• Tread Style

  Flat Tread

• Wheel Material

  Phenolic

• Bearing Type

  Roller Bearing

• Caster Type

  Spring-Loaded Swivel

• Mounting Type

  Top Plate

• Top Plate

  5-1/4″ x 7-1/4″

• Top Plate Bolt Hole Pattern

  3-3/8″ x 5-1/4″ slotted to 4-1/8″ x 6-1/8″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  Varies based on supplier availability

• Durometer

  90 Shore D

• Fork Finish

  Gray Powder Coated

• Temperature Range

  -50 to +250 F

• Noise Reduction

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  34 lbs

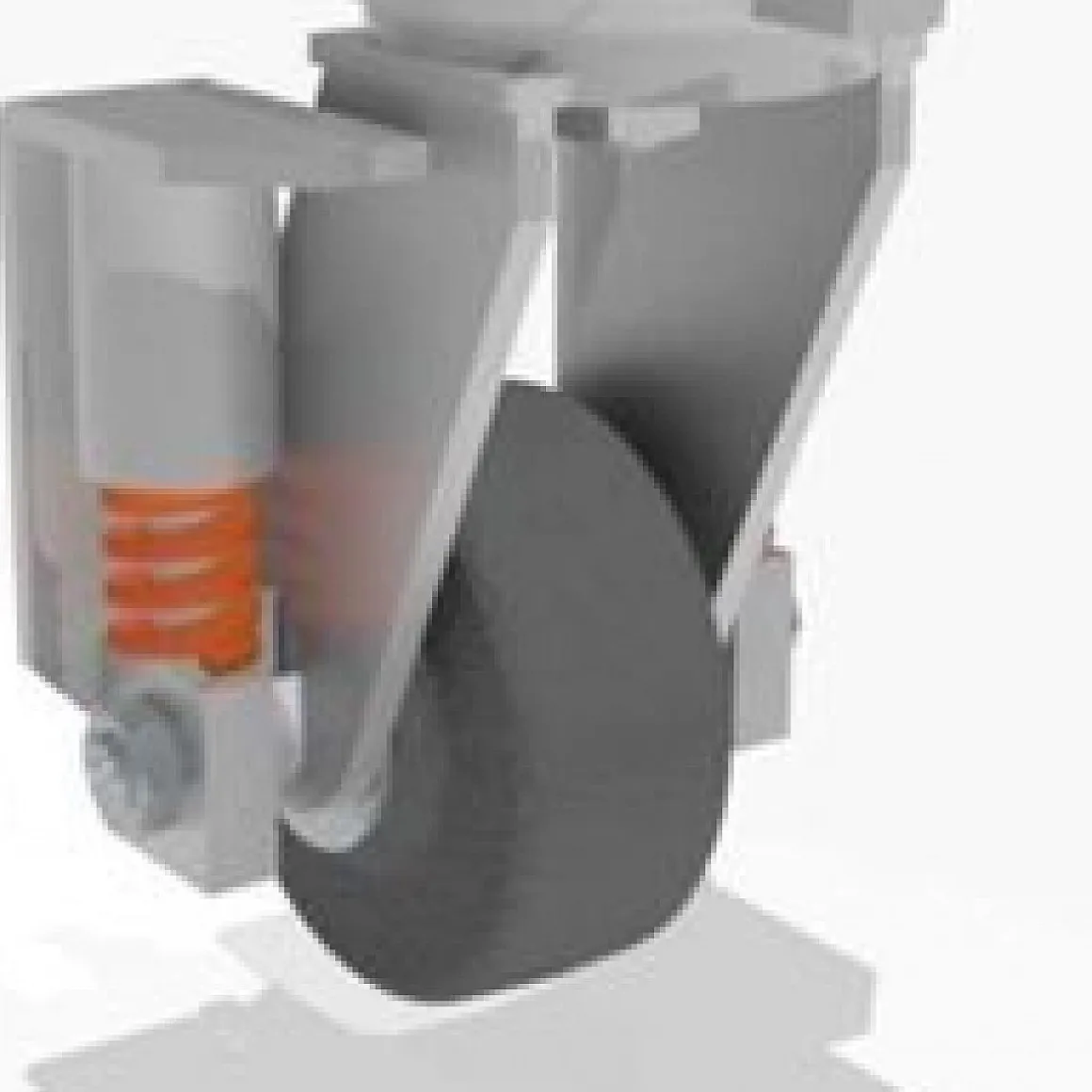

You’re viewing caster SKU S-SPCH-6PH-1 This 6″ x 2-1/2″ Black Hamilton Spring-Loaded Swivel Caster has a weight capacity of 850 lbs. per caster. This product has an overall height of 11-1/4″. Product specs (including lead time) can be found on the Specifications tab of this page.
