S-MDD-83DT

• Wheel Diameter

  8″

• Wheel Width

  3″

• Overall Height

  11″

• Weight Capacity

  5,000 lbs.

• Wheel Brand

  Hamilton

• Color

  Green

• Wheel Configuration

  Dual Wheel

• Tread Style

  Flat Tread

• Wheel Material

  Polyurethane

• Bearing Type

  Tapered Roller Bearing

• Core Material

  Cast Iron

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  8-1/2″ x 8-1/2″

• Top Plate Bolt Hole Pattern

  7″ x 7″

• Mounting Bolt Size

  11/16″

• Lead Time to Ship

  Varies based on supplier availability

• Axle Type

  Solid Axle

• Durometer

  95 Shore A

• Fork Finish

  Gray Powder Coated

• Temperature Range

  -50 to +200 F

• Noise Reduction

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  86 lbs

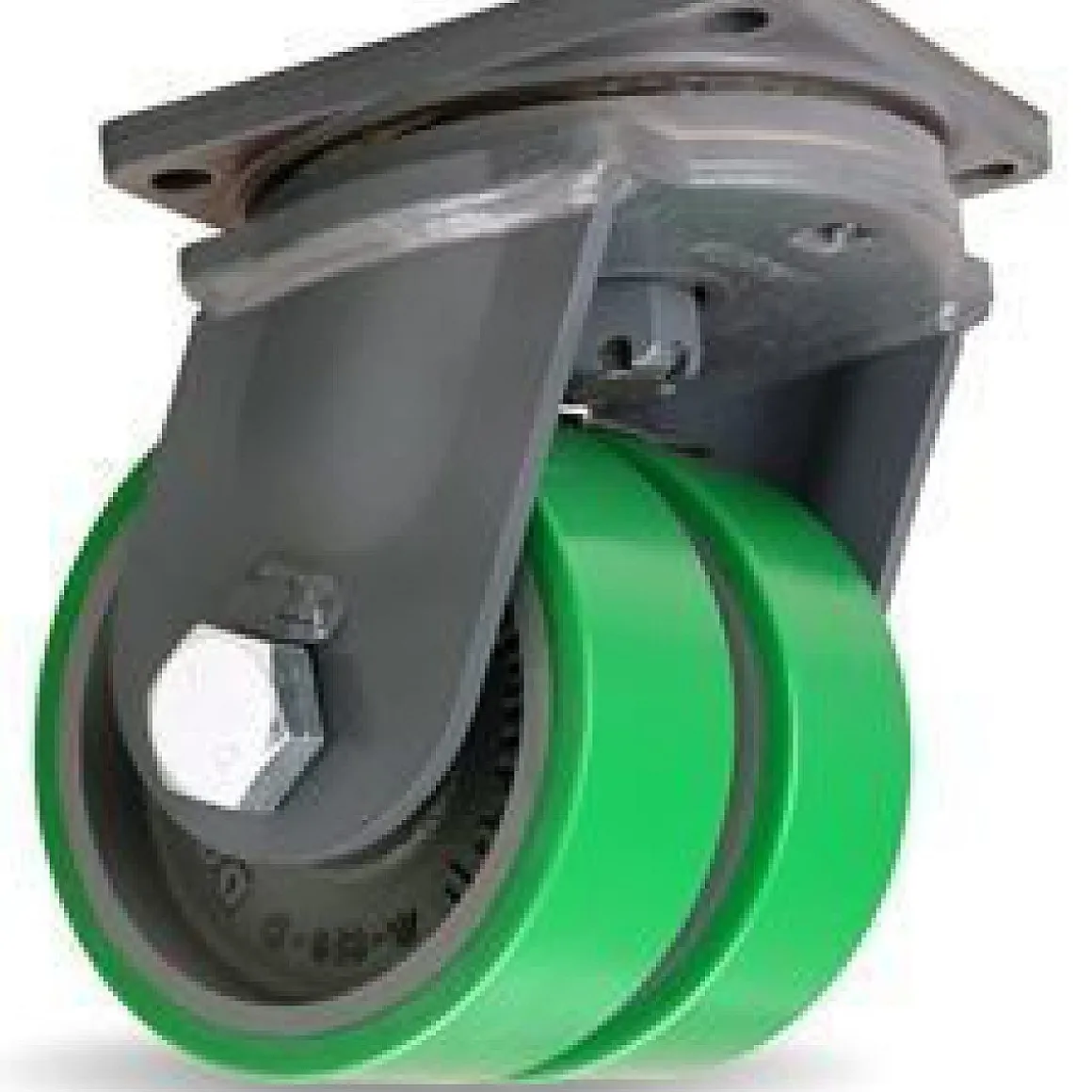

You’re viewing caster SKU S-MDD-83DT This 8″ x 3″ Green Hamilton Kingpin Swivel Caster has a weight capacity of 5,000 lbs. per caster. This product has an overall height of 11″. Product specs (including lead time) can be found on the Specifications tab of this page.
