S-EHD2-13DB

• Wheel Diameter

  10″

• Wheel Width

  3″

• Overall Height

  12-1/2″

• Weight Capacity

  6,000 lbs.

• Wheel Brand

  Hamilton

• Color

  Green

• Wheel Configuration

  Dual Wheel

• Tread Style

  Flat Tread

• Wheel Material

  Polyurethane

• Bearing Type

  Sealed Precision Ball Bearing

• Core Material

  Cast Iron

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  6-1/4″ x 7-1/2″

• Top Plate Bolt Hole Pattern

  4-1/8″ x 6-1/8″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  Varies based on supplier availability

• Axle Type

  Solid Axle

• Durometer

  95 Shore A

• Fork Finish

  Crimson Red

• Temperature Range

  -50 to +200 F

• Noise Reduction

  No

• Anti Static

  No

• Dust Cap

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  55.5 lbs

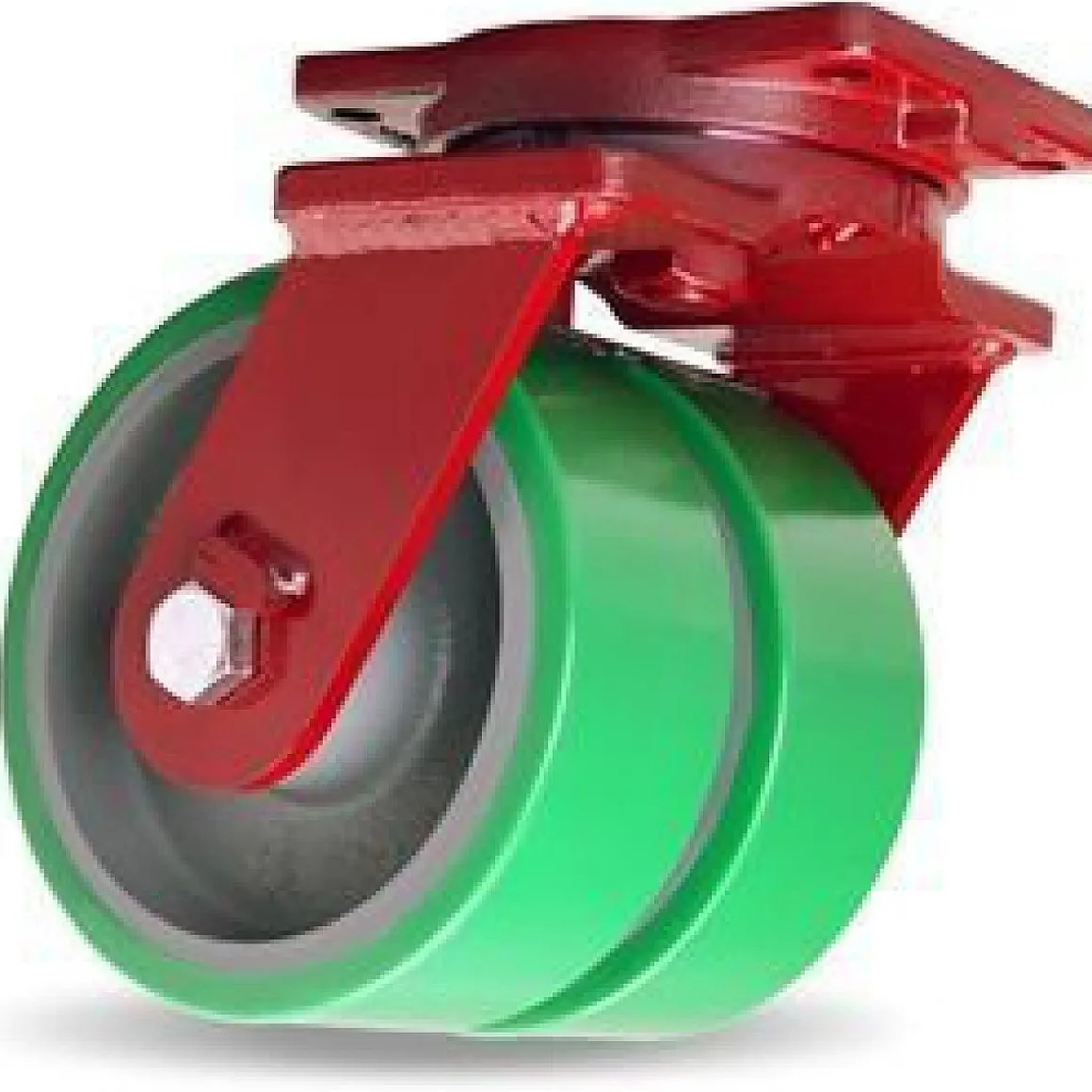

You’re viewing caster SKU S-EHD2-13DB If you are looking for a heavy duty caster that can meet low overall height requirements and high load capacities, a dual wheel caster is a strong option. Dual wheel casters will are more effective than single wheel casters in that they increase the constancy and are able to swivel with ease. This alleviates the problem of wide, single wheel tread casters that tend to œscrub against floors when moved from a fixed position.
