S-CH-63SPT

• Wheel Diameter

  6″

• Wheel Width

  3″

• Overall Height

  8″

• Weight Capacity

  1,800 lbs.

• Wheel Brand

  Hamilton

• Color

  Blue

• Wheel Configuration

  Single Wheel

• Tread Style

  Crown Tread

• Wheel Material

  Polyurethane

• Bearing Type

  Tapered Roller Bearing

• Core Material

  Cast Iron

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  5-1/4″ x 7-1/4″

• Top Plate Bolt Hole Pattern

  3-3/8″ x 5-1/4″ slotted to 4-1/8″ x 6-1/8″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  Varies based on supplier availability

• Axle Type

  Solid Axle

• Durometer

  85 Shore A

• Fork Finish

  Crimson Red

• Temperature Range

  -50 to +200 F

• Noise Reduction

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  28 lbs

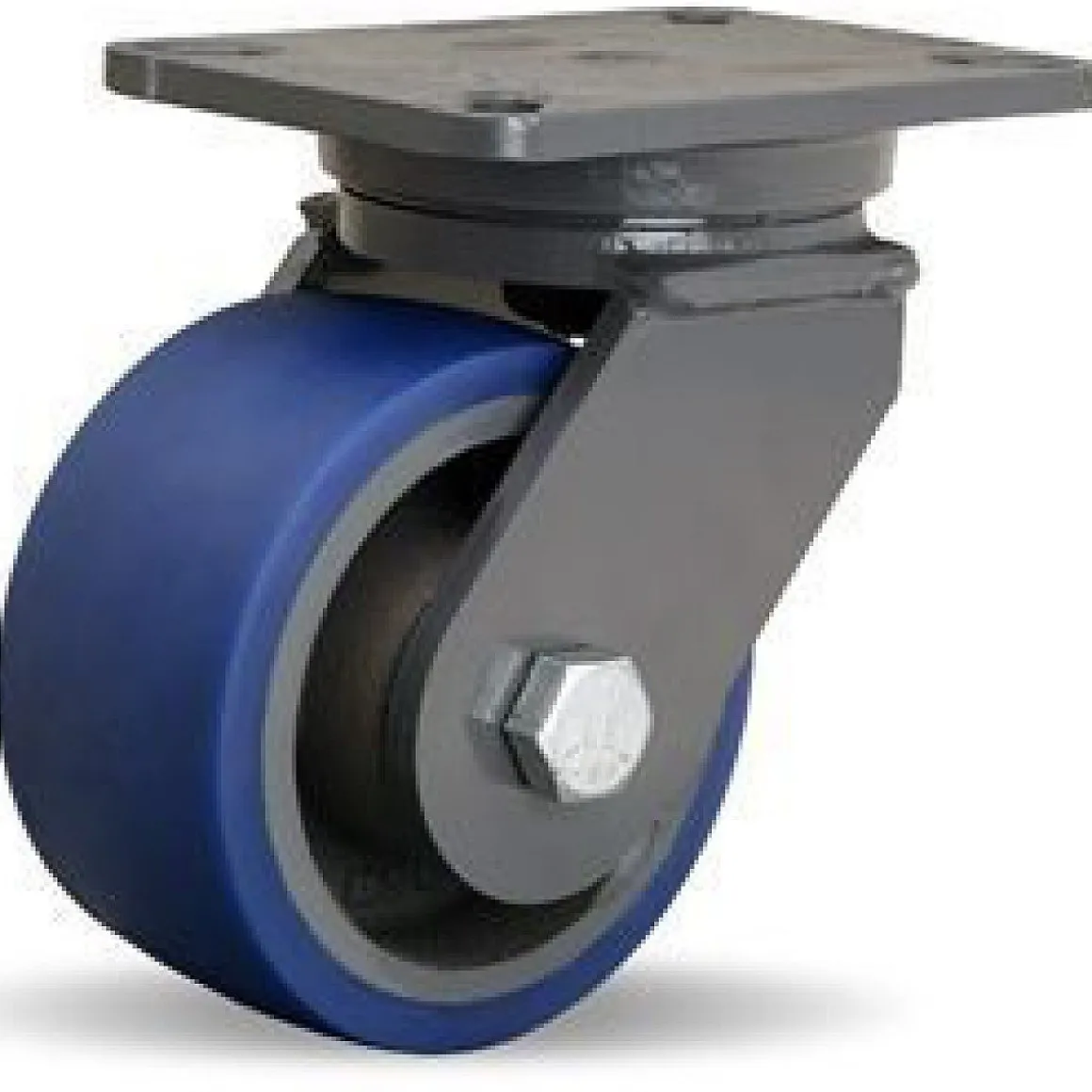

You’re viewing caster SKU S-CH-63SPT This 6″ x 3″ Blue Hamilton Kingpin Swivel Caster has a weight capacity of 1,800 lbs. per caster. This product has an overall height of 8″. Product specs (such as Top Plate Bolt Hole Pattern or Stem Size) can be found on the Specifications tab of this page.
