S-CH-12TRB

• Wheel Diameter

  12″

• Wheel Width

  3″

• Overall Height

  12-1/2″

• Weight Capacity

  4,000 lbs.

• Wheel Brand

  Hamilton

• Color

  Red

• Wheel Configuration

  Single Wheel

• Tread Style

  Flat Tread

• Wheel Material

  Polyurethane

• Bearing Type

  Sealed Precision Ball Bearing

• Core Material

  Forged Steel

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  5-1/4″ x 7-1/4″

• Top Plate Bolt Hole Pattern

  3-3/8″ x 5-1/4″ slotted to 4-1/8″ x 6-1/8″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  Varies based on supplier availability

• Axle Type

  Solid Axle

• Durometer

  95 Shore A

• Fork Finish

  Crimson Red

• Temperature Range

  -50 to +200 F

• Noise Reduction

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  59 lbs

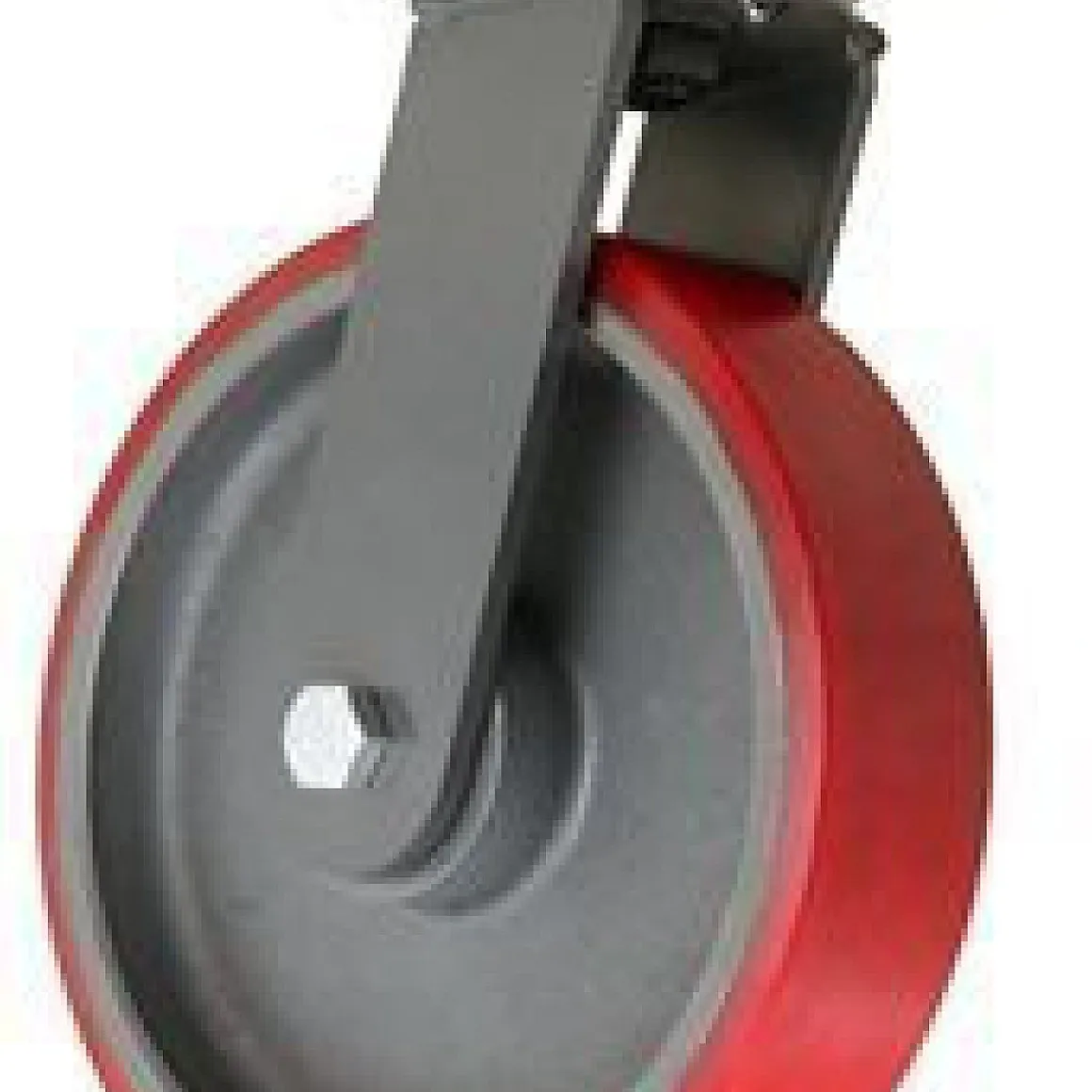

You’re viewing caster SKU S-CH-12TRB This 12″ x 3″ Red Hamilton Kingpin Swivel Caster has a weight capacity of 4,000 lbs. per caster. This product has an overall height of 12-1/2″. Product specs (including lead time) can be found on the Specifications tab of this page.
