S-526-MB

• Wheel Diameter

  6″

• Wheel Width

  2″

• Overall Height

  7-1/2″

• Weight Capacity

  1,250 lbs.

• Wheel Brand

  Hamilton

• Color

  Red

• Wheel Configuration

  Single Wheel

• Tread Style

  Flat Tread

• Wheel Material

  Cast Iron

• Bearing Type

  Sealed Precision Ball Bearing

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  4″ x 4-1/2″

• Top Plate Bolt Hole Pattern

  2-5/8″ x 3-5/8″ slotted to 3″ x 3″

• Mounting Bolt Size

  3/8″

• Lead Time to Ship

  Varies based on supplier availability

• Axle Type

  Solid Axle

• Fork Finish

  Zinc Plated

• Temperature Range

  -40 to +320 F

• Noise Reduction

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  12 lbs

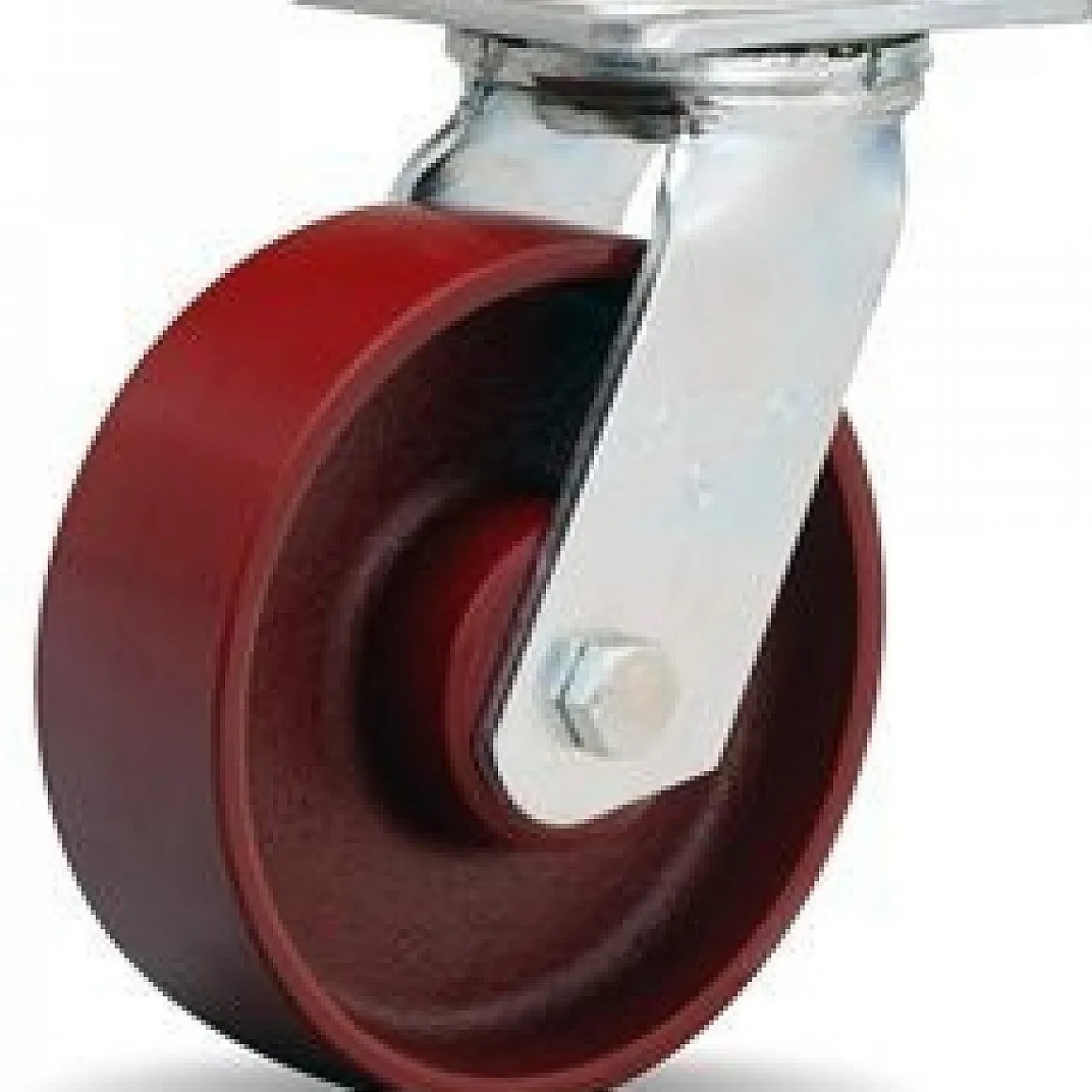

You’re viewing caster SKU S-526-MB This 6″ x 2″ Red Hamilton Kingpin Swivel Caster has a weight capacity of 1,250 lbs. per caster. This product has an overall height of 7-1/2″. Product specs (such as Top Plate Bolt Hole Pattern or Stem Size) can be found on the Specifications tab of this page.
