S-4108-AT

• Wheel Diameter

  8″

• Wheel Width

  2-1/2″

• Overall Height

  9-1/2″

• Weight Capacity

  450 lbs.

• Wheel Brand

  Hamilton

• Color

  Black

• Wheel Configuration

  Single Wheel

• Tread Style

  Flat Tread

• Wheel Material

  Rubber

• Bearing Type

  Ball Bearing

• Core Material

  Polypropylene

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  5″ x 5-1/2″

• Top Plate Bolt Hole Pattern

  2-7/16″ x 4-15/16″ slotted to 3-3/8″ x 5-1/4″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  Varies based on supplier availability

• Durometer

  75 Shore A

• Fork Finish

  Zinc Plated

• Temperature Range

  -30 to +120 F

• Noise Reduction

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  9 lbs

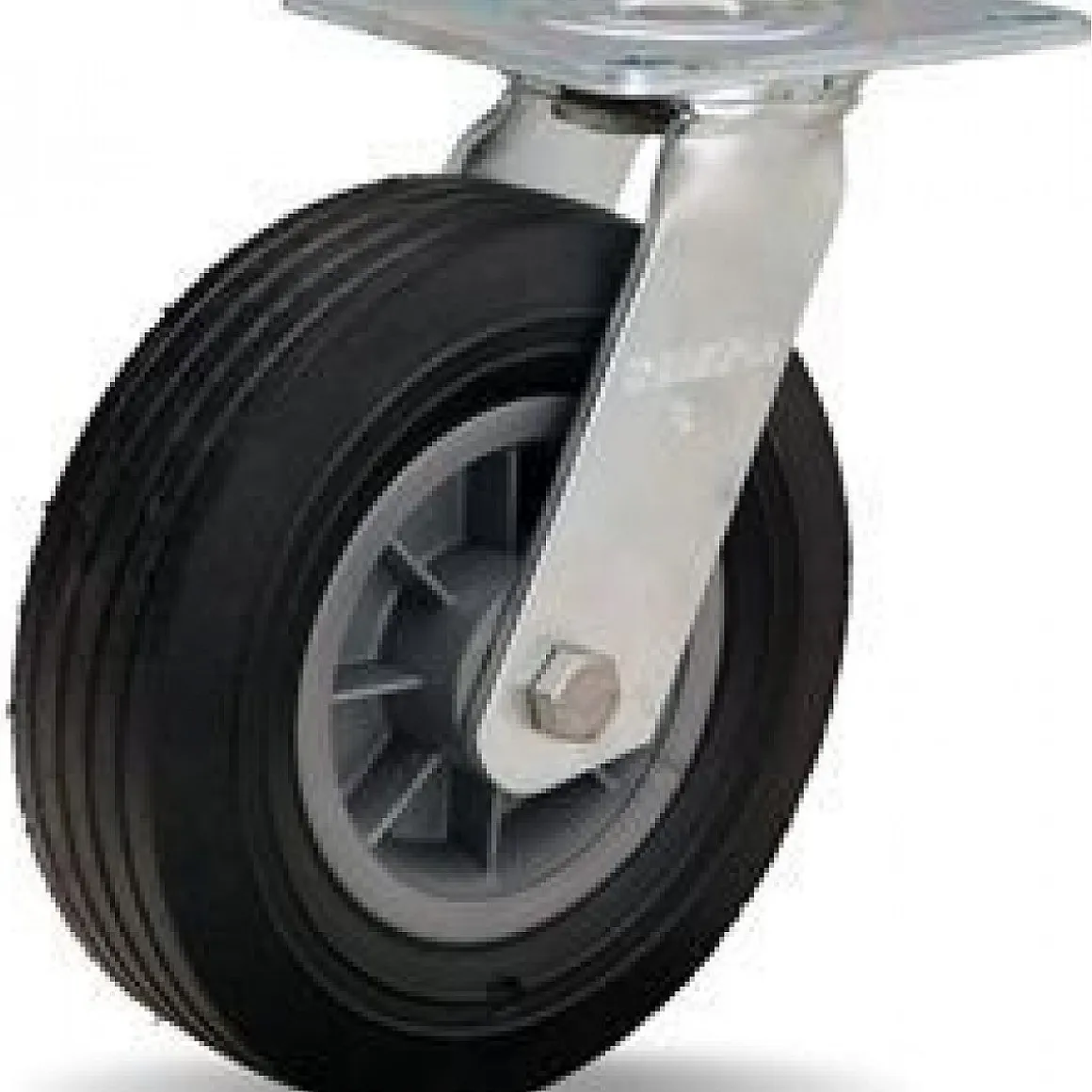

You’re viewing caster SKU S-4108-AT This 8″ x 2-1/2″ Black Hamilton Kingpin Swivel Caster has a weight capacity of 450 lbs. per caster. This product has an overall height of 9-1/2″. Product specs (such as Top Plate Bolt Hole Pattern or Stem Size) can be found on the Specifications tab of this page.
