R-SPCH-12SPT-1

• Wheel Diameter

  12″

• Wheel Width

  3″

• Overall Height

  16-1/4″

• Weight Capacity

  850 lbs.

• Wheel Brand

  Hamilton

• Color

  Blue

• Wheel Configuration

  Single Wheel

• Tread Style

  Flat Tread

• Wheel Material

  Polyurethane

• Bearing Type

  Tapered Roller Bearing

• Core Material

  Cast Iron

• Caster Type

  Spring-Loaded Rigid

• Mounting Type

  Top Plate

• Top Plate

  5-1/4″ x 7-1/4″

• Top Plate Bolt Hole Pattern

  3-3/8″ x 5-1/4″ slotted to 4-1/8″ x 6-1/8″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  Varies based on supplier availability

• Durometer

  85 Shore A

• Fork Finish

  Gray Powder Coated

• Temperature Range

  -50 to +175 F Intermittent, 0 to +150 F Continuous

• Application

  Manual Push/Pull

• Noise Reduction

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  71 lbs

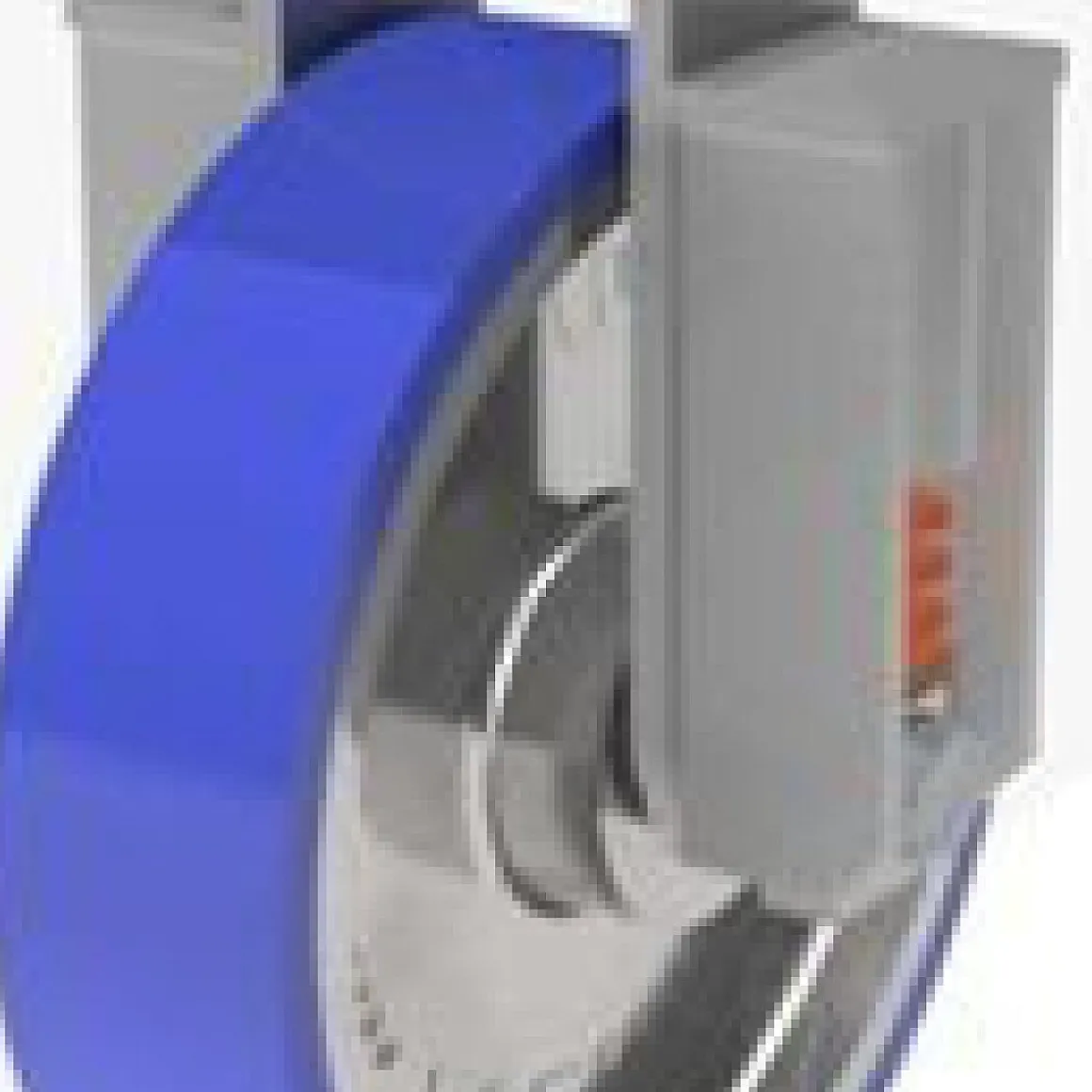

You’re viewing caster SKU R-SPCH-12SPT-1 This 12″ x 3″ Blue Hamilton Spring-Loaded Rigid Caster has a weight capacity of 850 lbs. per caster. This product has an overall height of 16-1/4″. Additional product specs can be found on the Specifications tab of this product page.
