R-SEC-63DT

• Wheel Diameter

  6″

• Wheel Width

  3″

• Overall Height

  8″

• Weight Capacity

  2,200 lbs.

• Wheel Brand

  Hamilton

• Color

  Green

• Wheel Configuration

  Single Wheel

• Tread Style

  Flat Tread

• Wheel Material

  Polyurethane

• Bearing Type

  Tapered Roller Bearing

• Core Material

  Cast Iron

• Caster Type

  Rigid

• Mounting Type

  Top Plate

• Top Plate

  5-1/4″ x 7-1/4″

• Top Plate Bolt Hole Pattern

  3-3/8″ x 5-1/4″ slotted to 4-1/8″ x 6-1/8″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  Varies based on supplier availability

• Axle Type

  Solid Axle

• Durometer

  95 Shore A

• Fork Finish

  Gray Powder Coated

• Temperature Range

  -50 to +200 F

• Application

  Manual Push/Pull

• Noise Reduction

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  22 lbs

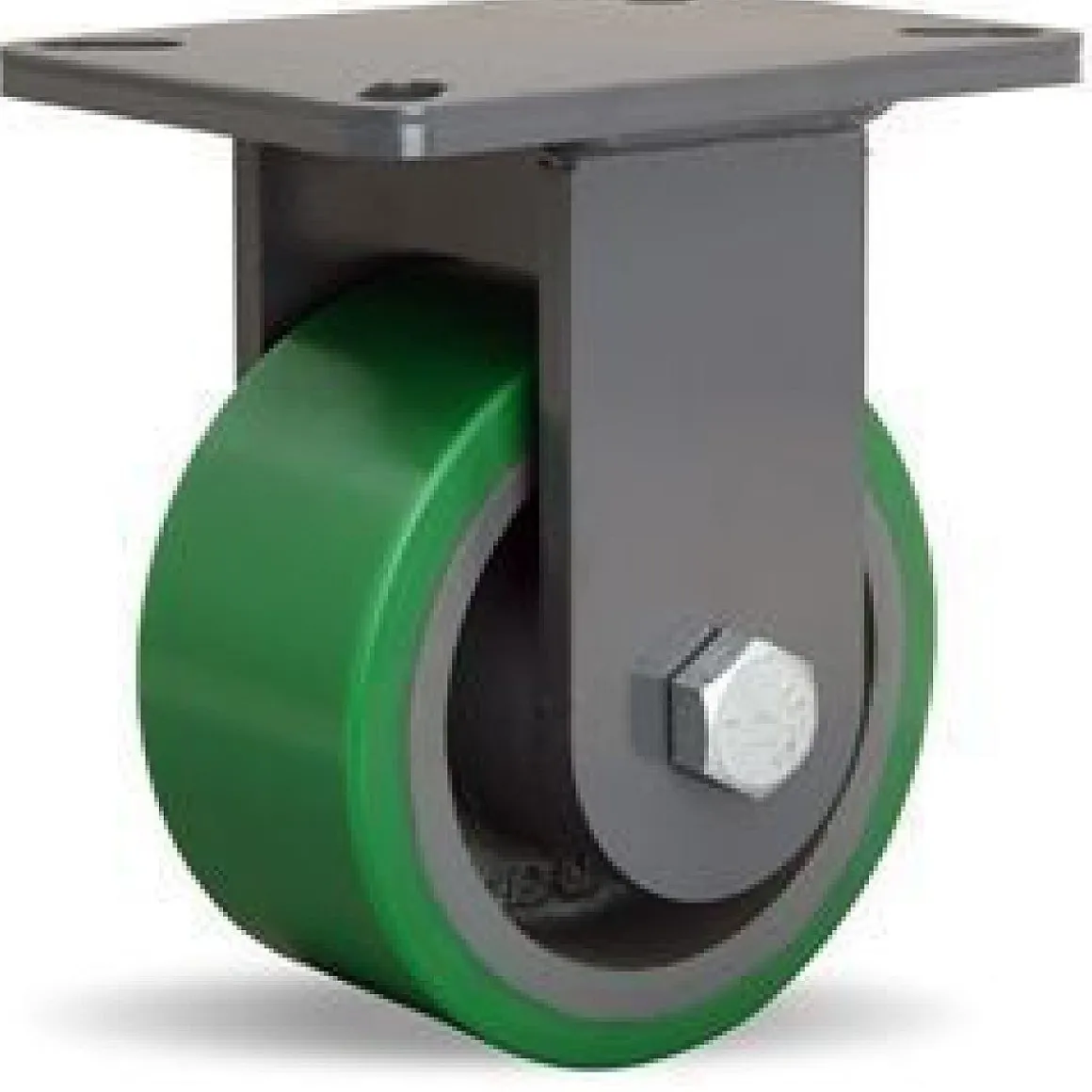

You’re viewing caster SKU R-SEC-63DT This 6″ x 3″ Green Hamilton Rigid Caster has a weight capacity of 2,200 lbs. per caster. This product has an overall height of 8″. Additional product specs can be found on the Specifications tab of this product page.Have questions or want a quote? Contact us via our website with any questions!
