R-CH-63MT

• Wheel Diameter

  6″

• Wheel Width

  3″

• Overall Height

  8″

• Weight Capacity

  2,500 lbs.

• Wheel Brand

  Hamilton

• Color

  Red

• Wheel Configuration

  Single Wheel

• Tread Style

  Crown Tread

• Wheel Material

  Cast Iron

• Bearing Type

  Tapered Roller Bearing

• Caster Type

  Rigid

• Mounting Type

  Top Plate

• Top Plate

  5-1/4″ x 7-1/4″

• Top Plate Bolt Hole Pattern

  3-3/8″ x 5-1/4″ slotted to 4-1/8″ x 6-1/8″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  Varies based on supplier availability

• Axle Type

  Solid Axle

• Fork Finish

  Crimson Red

• Temperature Range

  -40 to +320 F

• Application

  Manual Push/Pull

• Noise Reduction

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  23 lbs

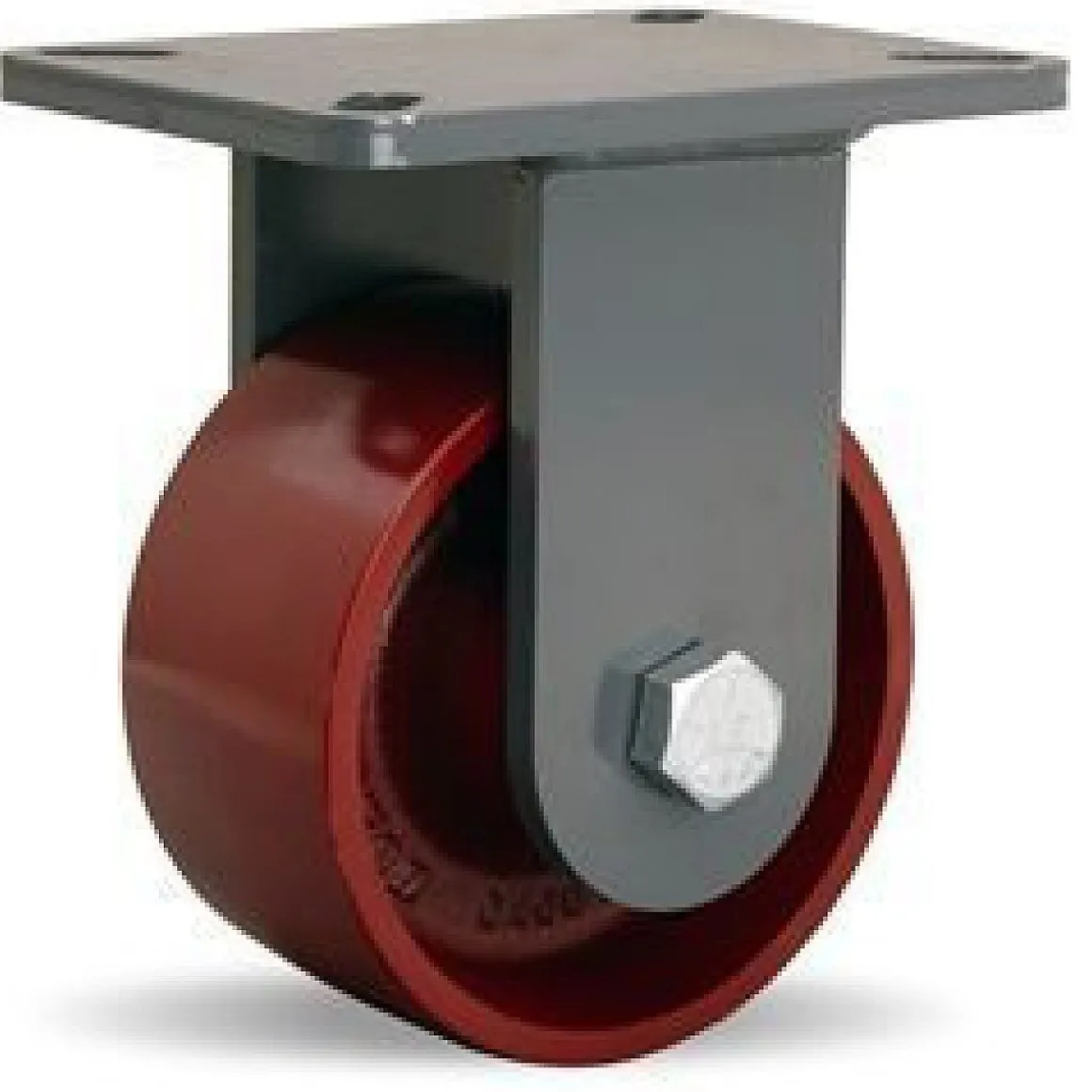

You’re viewing caster SKU R-CH-63MT This 6″ x 3″ Red Hamilton Rigid Caster has a weight capacity of 2,500 lbs. per caster. This product has an overall height of 8″. Additional product specs can be found on the Specifications tab of this product page. Consult our Caster Education section or contact us for more info!
