CCARMOR-1030S-DUROLASTOMER

• Wheel Diameter

  10″

• Wheel Width

  1/2″

• Overall Height

  11-1/2″

• Weight Capacity

  2,400 lbs.

• Wheel Brand

  Durable

• Color

  Gray

• Wheel Configuration

  Single Wheel

• Tread Style

  Crown Tread

• Wheel Material

  Elastomer

• Caster Type

  Kingpinless Swivel

• Mounting Type

  Top Plate

• Top Plate

  4-1/2″ x 6-1/4″

• Top Plate Bolt Hole Pattern

  2-7/16″ x 4-15/16″ slotted to 3-3/8″ x 5-1/4″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  3-5 Business Days

• Swivel Radius

  7.5

• Axle Type

  Solid Axle

• Durometer

  68 Shore D (+/- 5)

• Fork Finish

  Zinc Plated

• Temperature Range

  -50 to +180 F

• Application

  Manual Push/Pull

• Environment

  Varied

• Industry

  Aerospace, Automotive, Distribution, Engineering, Machine Shop, Manufacturing, Warehouse

• Noise Reduction

  No

• Anti Static

  No

• Dust Cap

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  17.61 lbs

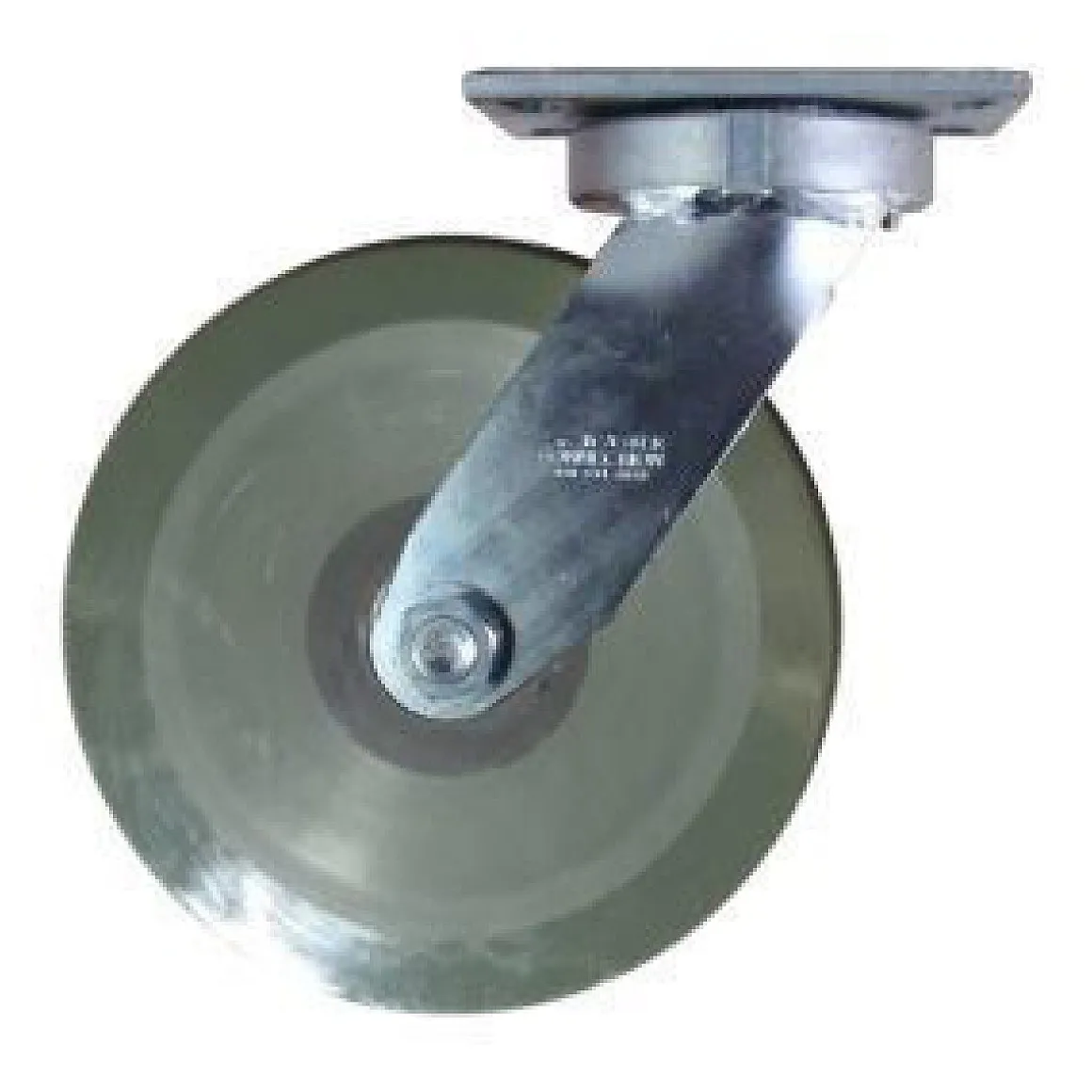

You’re viewing caster SKU CCARMOR-1030S-DUROLASTOMER This 10″ x 3″ Kingpinless Solid Cast Polyurethane Elastomer Swivel Caster is made of liquid cast polyurethane. They are easy to push (designed for medium loads) with easy start-up, are capable of withstanding shock loads and abusive conditions. They are durable and resist abrasions, cracking and chipping, and are floor protective and non marking. Ideal uses for this wheel are Towlines, freezers, and other continuous use applications.

For more info, check out Caster Wheel Types.

Kingpinless caster rigs are different from standard kingpin caster rigs in that the swivel section is held together without a rivet or nut and bolt kingpin. Kingpinless caster rigs are held together by a single row of ball bearings that are contained by a full contact interlocking swivel raceway design. Kingpinless casters are ideal for towing, conveyor, maintenance/utility carts, Towlines, drag lines and more robust applications seen in industrial environments.

For more info, check out Caster Rig Types.
