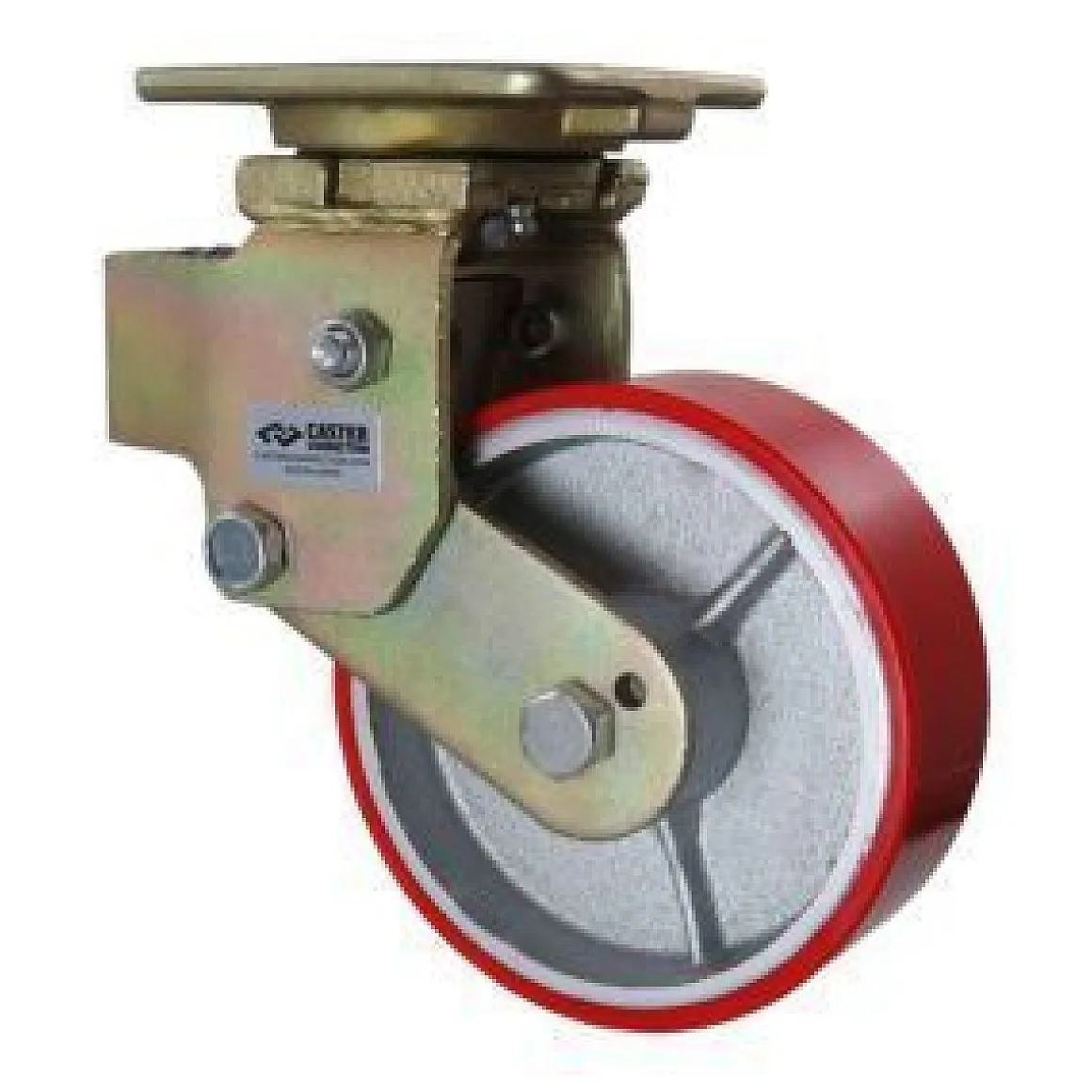

6″ Polyurethane Spring-Loaded Swivel Caster

• Wheel Diameter

  6″

• Wheel Width

  2″

• Overall Height

  8-3/4″

• Weight Capacity

  700 lbs.

• Color

  Red

• Wheel Configuration

  Single Wheel

• Tread Style

  Flat Tread

• Wheel Material

  Polyurethane

• Core Material

  Cast Iron

• Caster Type

  Spring-Loaded Swivel

• Mounting Type

  Top Plate

• Top Plate

  4″ x 4-1/2″

• Top Plate Bolt Hole Pattern

  2-5/8″ x 3-5/8″ slotted to 3″ x 3″

• Mounting Bolt Size

  3/8″

• Lead Time to Ship

  1-2 Weeks

• Swivel Radius

  4.5

• Durometer

  95 Shore A (+/- 5)

• Fork Finish

  Zinc Plated

• Noise Reduction

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  13.5 lbs

You’re viewing caster SKU 6-SPL-S-939-7-OH9 This product is a 6″ Polyurethane Spring-Loaded Swivel Caster with a weight capacity of 700 lbs. per caster. This product has an overall height of 8-3/4″. Product specs (including lead time) can be found on the Specifications tab of this page.
