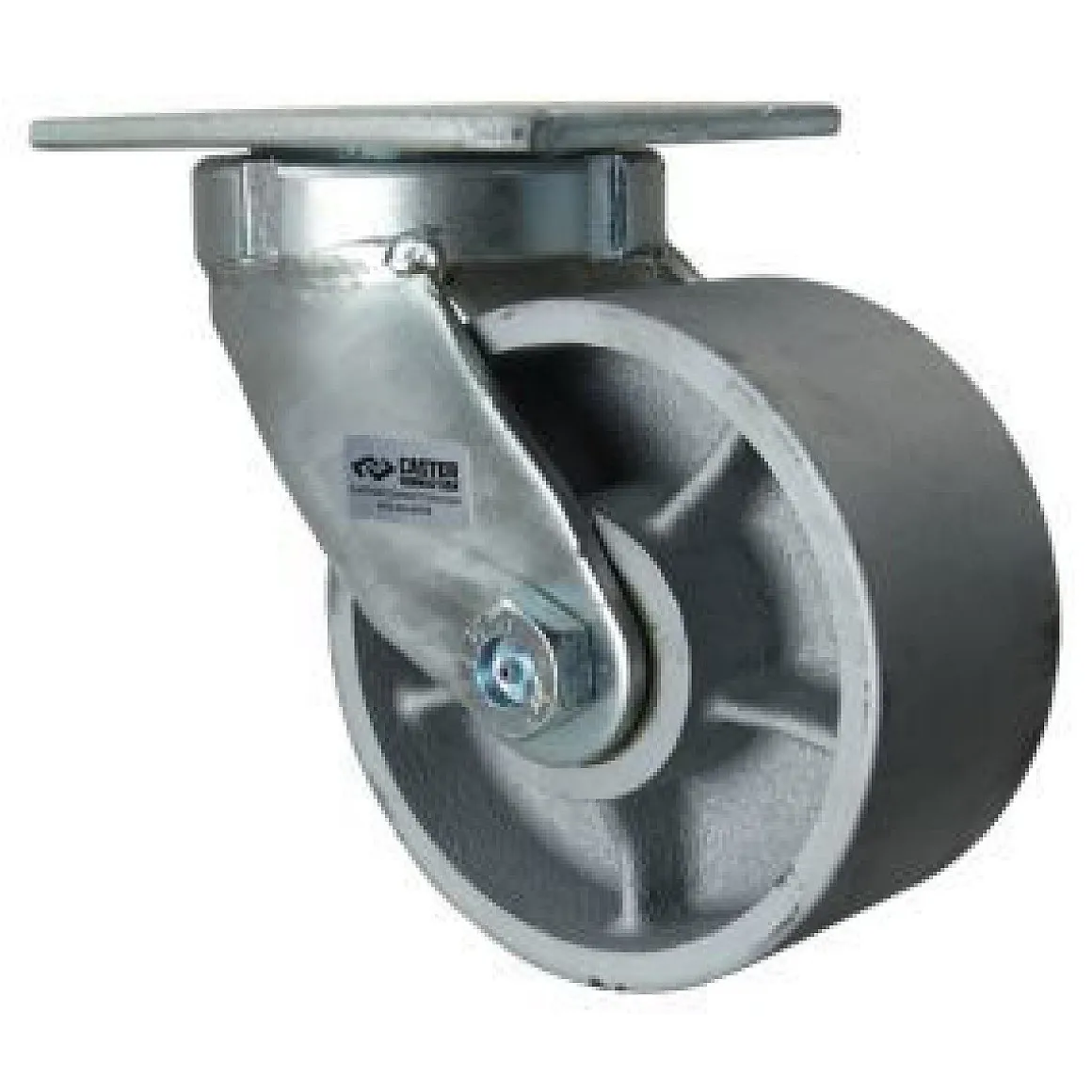

6″ Kingpinless Cast Iron Swivel Caster

• Wheel Diameter

  6″

• Wheel Width

  1/2″

• Overall Height

  7-1/2″

• Weight Capacity

  2,500 lbs.

• Color

  Silver

• Wheel Configuration

  Single Wheel

• Tread Style

  Flat Tread

• Wheel Material

  Cast Iron

• Caster Type

  Kingpinless Swivel

• Mounting Type

  Top Plate

• Top Plate

  4-1/2″ x 6-1/4″

• Top Plate Bolt Hole Pattern

  2-7/16″ x 4-15/16″ slotted to 3-3/8″ x 5-1/4″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  3-5 Business Days

• Swivel Radius

  4.5

• Axle Type

  Zirc Axle

• Fork Finish

  Zinc Plated

• Temperature Range

  -45 to +600 F

• Application

  Manual Push/Pull

• Floor Type

  Varied-Indoor

• Noise Reduction

  No

• Anti Static

  No

• Dust Cap

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  14.25 lbs

You’re viewing caster SKU CCARMOR-630S-179-7

This 6 x 3 Kingpinless Cast Iron Swivel Caster or œsemi-steel is a strong, durable and cost effective solution that can carry heavy loads. Featuring a weight capacity of 2,500 lbs. and an operating temperature range of -45° to +600° Fahrenheit, they roll easily on clean, debris free floors. This wheel is not recommended for wet environments as it can rust.

For more info, check out Caster Wheel Types.

Kingpinless caster rigs are different from standard kingpin caster rigs in that the swivel section is held together without a rivet or nut and bolt kingpin. Kingpinless caster rigs are held together by a single row of ball bearings that are contained by a full contact interlocking swivel raceway design. Kingpinless casters are ideal for towing, conveyor, maintenance/utility carts, Towlines, drag lines and more robust applications seen in industrial environments.

For more info, check out Caster Rig Types.
