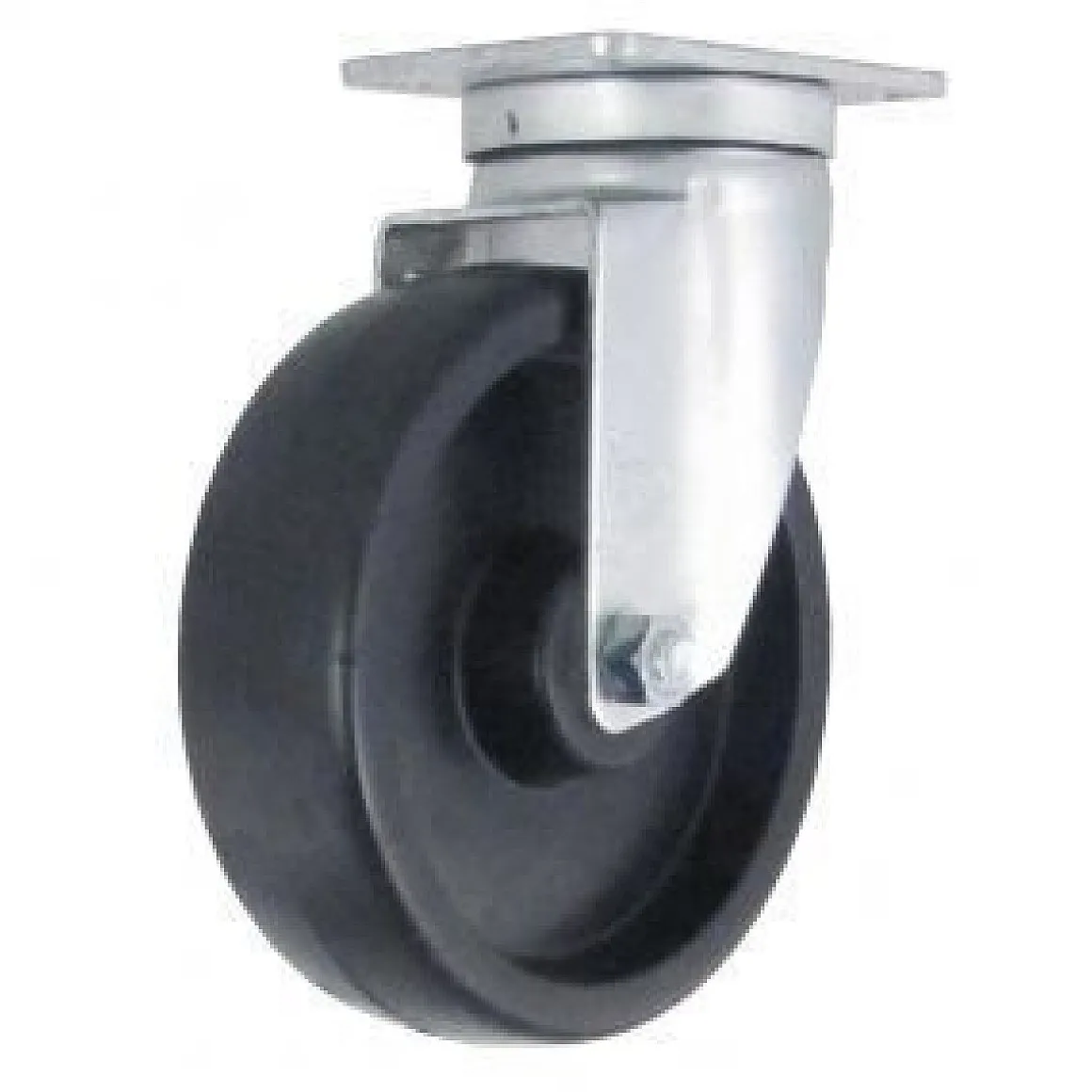

5″Stainless Steel Polyolefin Swivel Caster

• Wheel Diameter

  5″

• Wheel Width

  1-1/4″

• Overall Height

  6-3/16″

• Weight Capacity

  350 lbs.

• Color

  Maroon

• Wheel Configuration

  Single Wheel

• Tread Style

  Crown Tread

• Wheel Material

  Polyolefin

• Caster Type

  Kingpin Swivel

• Mounting Type

  Top Plate

• Top Plate

  2-3/8″ x 3-5/8″

• Top Plate Bolt Hole Pattern

  1-3/4″ x 3″

• Mounting Bolt Size

  5/16″

• Lead Time to Ship

  3-5 Business Days

• Swivel Radius

  4

• Axle Type

  Solid Axle

• Durometer

  70 Shore D (+/- 5)

• Fork Finish

  Stainless Steel

• Temperature Range

  -40 to +180 F

• Noise Reduction

  No

• Anti Static

  No

• Dust Cap

  Yes

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  2.34 lbs

You’re viewing caster SKU 5-30SS-513-2

This 5″ x 1-1/4″Stainless Steel Polyolefin Swivel Caster is 100% washable and highly resistant to organic solvents, oil, grease, most chemicals, acids, and cleaning solutions. Featuring weight capacities of 100 to 900 pounds per wheel, the 70 Shore D polyolefin wheel is a solid injection-molded wheel that is lightweight and economically-friendly. Polyolefin wheels feature an operating temperature range of -40° F to +180° F.

For more info, check out Caster Wheel Types.
