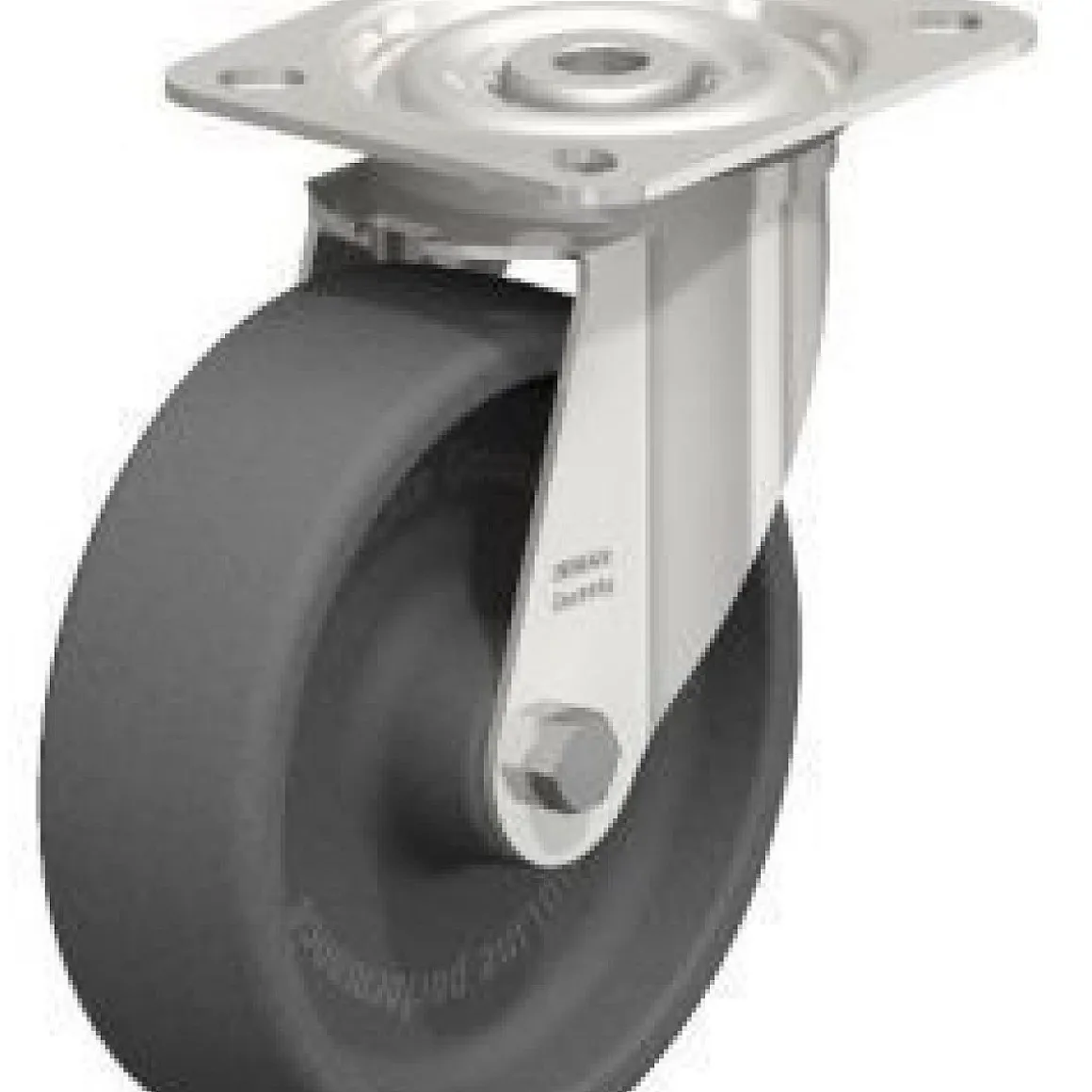

5″ X 1-9/16″ Nylon Swivel Caster

• Wheel Diameter

  5″

• Wheel Width

  1-9/16″

• Overall Height

  5-7/8″

• Weight Capacity

  330 lbs.

• Wheel Brand

  Blickle

• Color

  Gray

• Wheel Material

  Nylon

• Core Material

  Nylon

• Mounting Type

  Top Plate

• Top Plate

  100 mm x 85 mm

• Top Plate Bolt Hole Pattern

  80 mm x 60 mm

• Mounting Bolt Size

  5/16″

• Lead Time to Ship

  Contact Us for Lead Time

• Durometer

  85° Shore D

• Temperature Range

  -15 to +480 F

• Noise Reduction

  No

• Anti Static

  No

• Dust Cap

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  2.1 lbs

You’re viewing caster SKU LIX-POHI 125G-OF-XAT Made of pressed high-quality, chromium-nickel stainless steel (Material No. 1.4301/AISI 304), with double ball bearing in the swivel head, strong central kingpin. The special Blickle dynamic riveting process of the swivel head results in smooth rolling characteristics, increased service life and the swivel head play is set specifically for high temperature applications. For environments with strict regulations on cleanliness, hygiene and temperature resistance, the swivel head is supplied without grease (˜-OF) as standard. All parts such as balls, central kingpin and axle material are corrosion-resistant. Bolted wheel axle. Vibration-ground finished. Made of high-quality, impact-resistant, highly heat-resistant nylon, very low rolling and swivelling resistance, smooth running performance on even floors, very high abrasion resistance, suitable for autoclaves.
