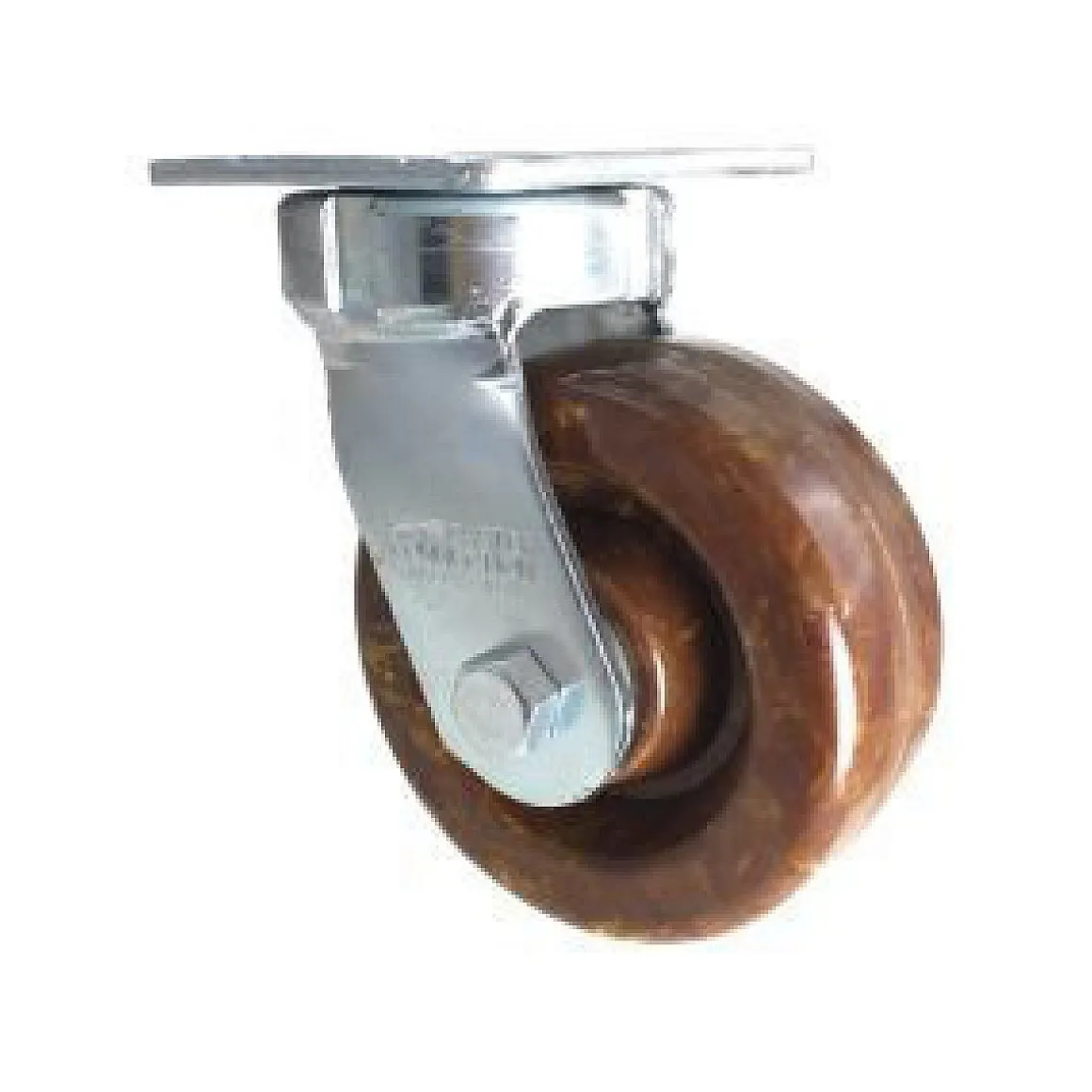

5″ High-Temp Epoxy Kingpinless Swivel Caster

• Wheel Diameter

  5″

• Wheel Width

  2″

• Overall Height

  6-1/2″

• Weight Capacity

  1,000 lbs.

• Color

  Brown

• Wheel Configuration

  Single Wheel

• Tread Style

  Flat Tread

• Wheel Material

  High-Temp Epoxy

• Caster Type

  Kingpinless Swivel

• Mounting Type

  Top Plate

• Top Plate

  4″ x 4-1/2″

• Mounting Bolt Size

  3/8″

• Lead Time to Ship

  3-5 Business Days

• Swivel Radius

  3.25

• Fork Finish

  Zinc Plated

• Temperature Range

  -40 to +480 F

• Application

  Manual Push/Pull

• Environment

  Alkalines, Animal Fats, Gases, High Heat, Indoor, Mild Chemicals, Oil & Grease, Salt, Solvents, Steam, Water

• Floor Type

  Varied-Indoor

• Industry

  Bakeries, Dairy, Food Manufacturing, Laundries, Meat Processing, Warehouse

• Noise Reduction

  No

• Dust Cap

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  6.55 lbs

You’re viewing caster SKU CCALPHA-5S-HT-EPOXY This product is a 5″ High-Temp Epoxy Kingpinless Swivel Caster with a weight capacity of 1,000 lbs. per caster.
