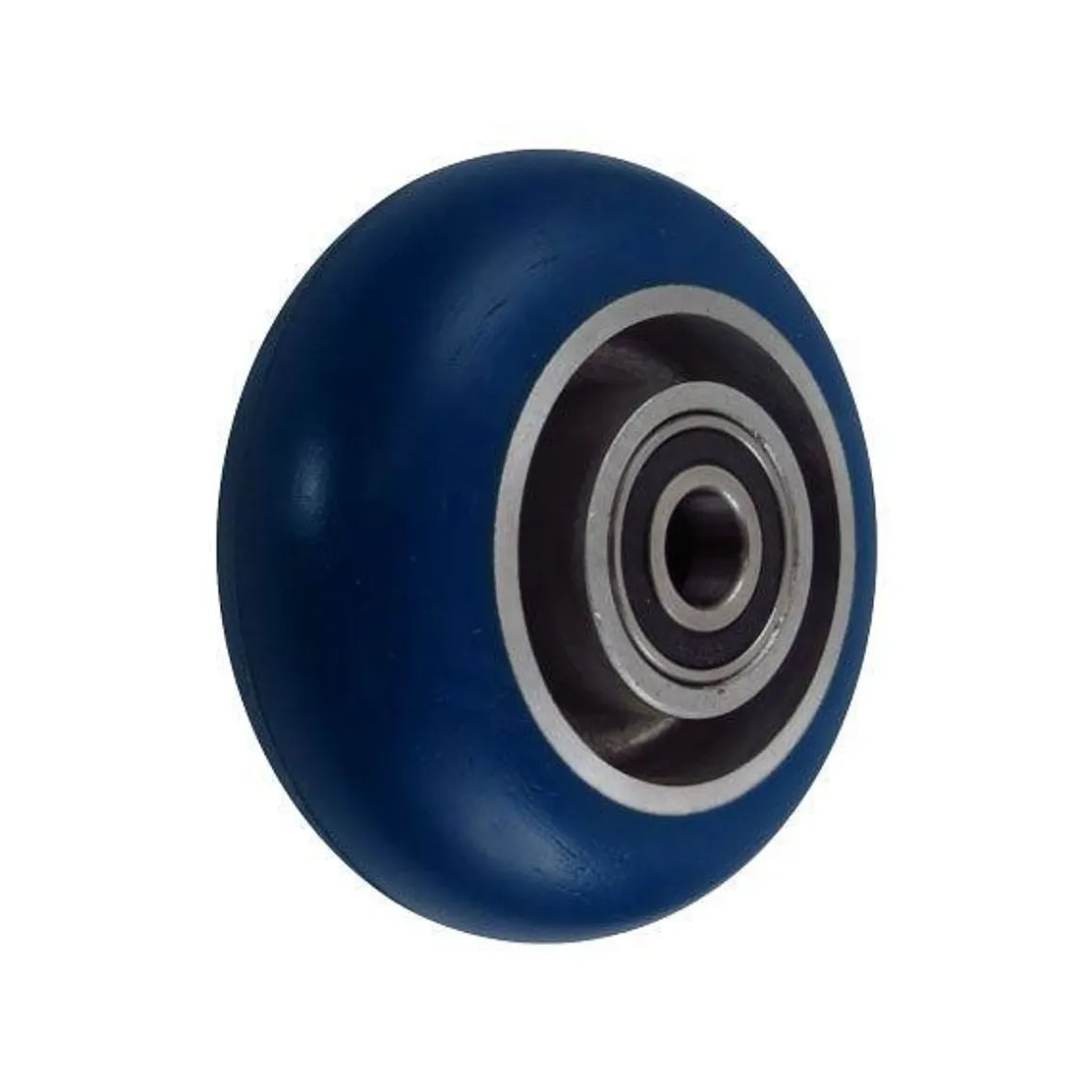

5″ CC Apex ESD Wheel

• Wheel Diameter

  5″

• Wheel Width

  2″

• Weight Capacity

  800 lbs.

• Brand

  CC Apex ESD – Caster Connection

• Color

  Blue

• Tread Style

  Crown Tread

• Wheel Material

  Polyurethane

• Core Material

  Aluminum

• Bore Size

  1/2″

• Bearing Type

  6203-RS Ball Bearing

• Hub Length

  2-7/16″

• Lead time to Ship

  3-5 Business Days

• Durometer

  87 Shore A( +/-5 )

• Application

  Manual Push/Pull, Towlines, Ergonomic Concerns, Safety, Debris, Floor Protection

• Environment

  Indoor, Debris, Delicate Flooring, Electrostatic Discharge Present, Limited Space for Maneuverability, Low Noise Necessary, Metal Chips, Push/Pull Reduction Necessary, Safety, Thresholds, Weld Slag and/or Metal Chips

• Floor Type

  Varied-Indoor

• Industry

  Biotechnology, Healthcare, Manufacturing, Material Handling, Technology, Utilities, Automotive, Industrial/Mechanical Engineering, Electrical/Electronic manufacturing, Electrical/Electronic Manufacturing

• Noise Reduction

  Yes

• Ship Weight

  2 lbs

You’re viewing caster wheel SKU CCAPEX-ESD-5-1/2

This 5″ x 2″ CC Apex ESD Wheel (electrostatic dissipating) is made of the same ergonomic, noise reducing, and durability qualities as the original CC Apex, but with the added benefit of containing electrostatic dissipating properties throughout the wheels polyurethane tread. These wheels are ideal for clean room environments and other areas where electrostatic build up is an issue. CC Apex ESD is available in 2 and 1-1/4 wide.

Electrostatic dissipative material conducts electricity, with a surface resistivity of equal to or greater than 10^5 ohms, but less than 10^12 ohms.

This material is prescribed for discharge-safe areas because it allows static electricity to flow through the caster wheels and into conductive flooring.

It is highly recommended that all casters on a cart (or other fixture) in an electrostatic discharge-safe area are electrostatic dissipative, in order to strive for maximum contact with conductive flooring.

For more info, check out Caster Wheel Types.

. This wheel includes a Roller Bearing with a caster hub length of 2-3/16″.
