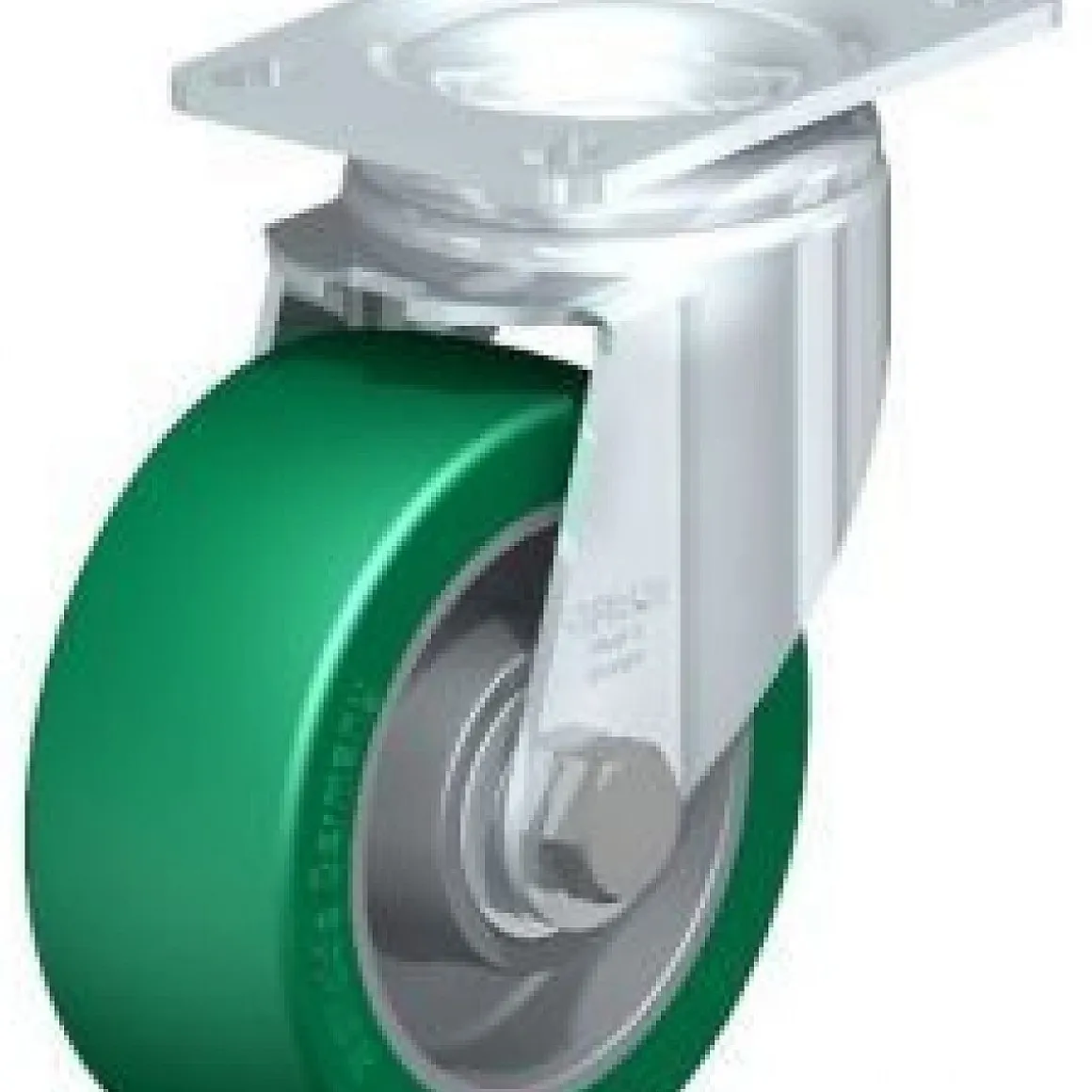

4″ X 1-9116″ polyurethane-elastomer Swivel Caster

• Wheel Diameter

  4″

• Wheel Width

  1-9/16″

• Overall Height

  5-1/25″

• Weight Capacity

  550 lbs.

• Wheel Brand

  Blickle

• Color

  Green

• Wheel Configuration

  Single Wheel

• Wheel Material

  Polyurethane-Elastomer

• Bearing Type

  Ball Bearing

• Core Material

  Aluminum

• Caster Type

  Maintenance-Free Swivel

• Mounting Type

  Top Plate

• Top Plate

  2-1/2″ x 3-5/8″

• Top Plate Bolt Hole Pattern

  1-3/4″ x 2-13/16″ x 3-3/16″

• Mounting Bolt Size

  5/16″

• Lead Time to Ship

  Contact Us for Lead Time

• Durometer

  75° Shore A

• Temperature Range

  -15 to +160 F

• Environment

  Delicate Flooring, Low Noise Necessary

• Noise Reduction

  No

• Anti Static

  No

• Dust Cap

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  2.19 lbs

You’re viewing caster SKU L-ALST 100K-12 Made of pressed steel, with double ball bearing in the swivel head, ball protection by the special top plate and ball disc design. The special Blickle dynamic riveting process of the swivel head results in minimal swivel head play and smooth rolling characteristics with an increased service life achieved by the work hardening of the ball race grooves. Bolted wheel axle. Zinc-plated, blue-passivated, Cr6-free. Made of high-quality, reaction-injected polyurethane-elastomer Blickle Softhane°, very high operational comfort through the especially thick, elastic tread, low-noise operation, low rolling resistance, very good floor preservation, very high abrasion resistance, high cut and tear propagation resistance, very good chemical connection with the wheel center.
