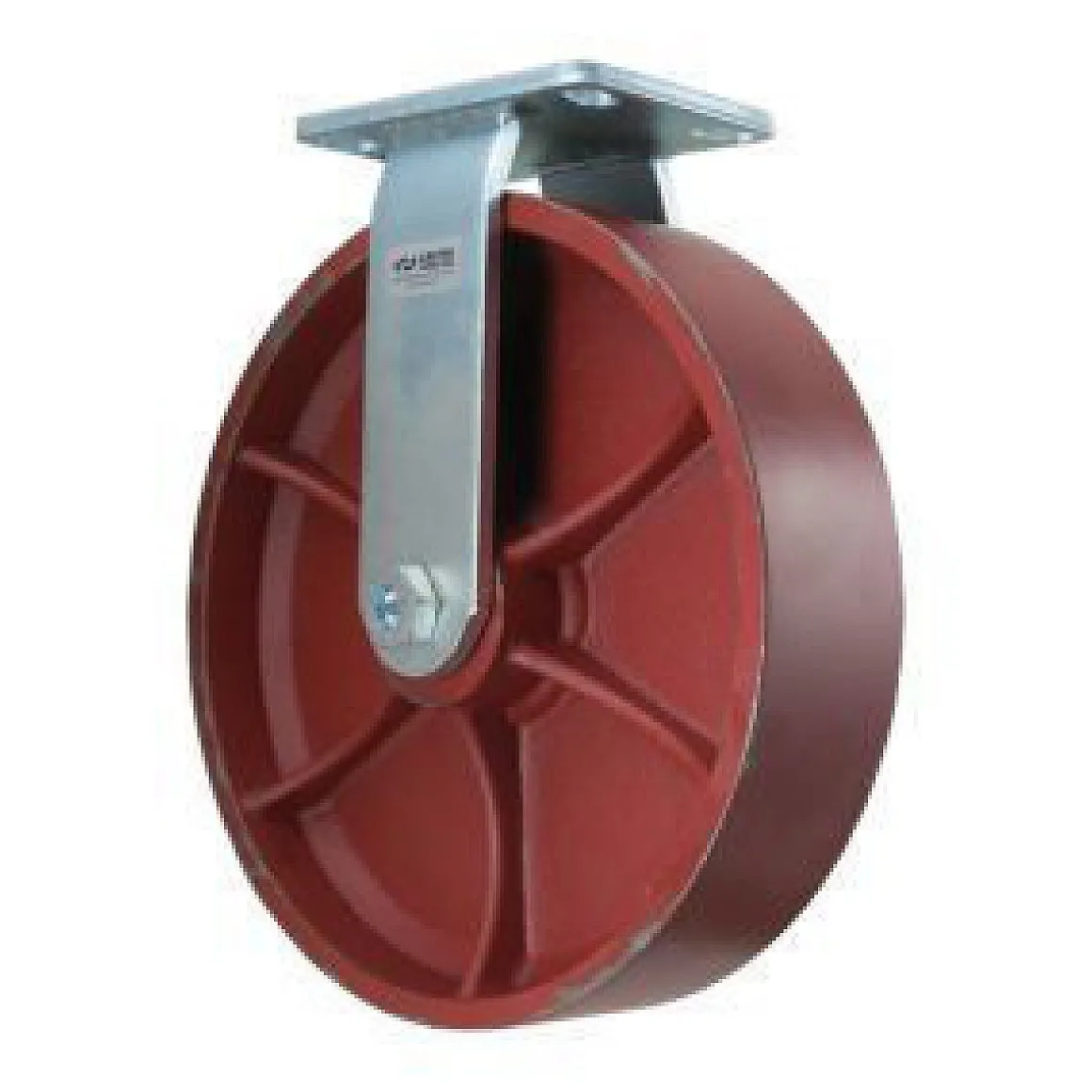

12″ Ductile Steel Rigid Caster

• Wheel Diameter

  12″

• Wheel Width

  3″

• Overall Height

  13-1/2″

• Weight Capacity

  6,000 lbs.

• Color

  Maroon

• Wheel Configuration

  Single Wheel

• Tread Style

  Flat Tread

• Wheel Material

  Ductile Steel

• Bearing Type

  Roller Bearing

• Caster Type

  Rigid

• Mounting Type

  Top Plate

• Top Plate

  4-1/2″ x 6-1/4″

• Top Plate Bolt Hole Pattern

  2-7/16″ x 4-15/16″ slotted to 3-3/8″ x 5-1/4″

• Mounting Bolt Size

  1/2″

• Lead Time to Ship

  1-2 Weeks

• Axle Type

  Zirc Axle

• Fork Finish

  Zinc Plated

• Temperature Range

  -45 to +800 F

• Application

  Manual Push/Pull

• Noise Reduction

  No

• Thread Pitch

  No

• Stem Length

  No

• Ship Weight

  36.4 lbs

You’re viewing caster SKU 1230-R-DS This product is a 12″ Ductile Steel Rigid Caster with a weight capacity of 6,000 lbs. per caster. This product has an overall height of 516. Product specs (such as Top Plate Bolt Hole Pattern or Stem Size) can be found on the Specifications tab of this page.
